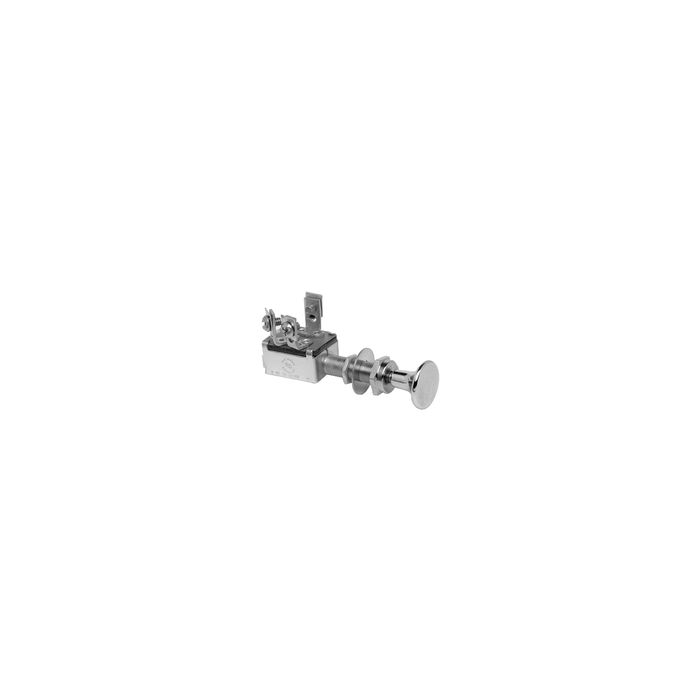

Cole Hersee M476Bp Off-On-On Push-Pull Switch

Mfg. Name :COLE HERSEE
Mfg. PN : M476BP
SKU :  12-M476BP

$38.41
COLE HERSEE M476BP OFF-ON-ON PUSH-PULL SWITCH
Picture may differ from product, check the description and confirm your part numbers.

Product Description

M482-M482BP: One circuit switch. Normally off. Two positions: off/on. S.P.S.T. Gasket sealed case protects against moisture and dust. Chrome plated brass knob and face nut. Knob face diameter is 7/8". Mounts in panels up through 3/4" thick. 2 Brass screw terminals.
M606-M606BP: One circuit switch. Normally off. Two positions: off/on. S.P.S.T. Plasticized body sealed against moisture and dirt. Two 18 gauge insulated copper wire leads, 12" long. Chrome plated brass knob and face nut. Knob face diameter is 7/8". Mounts in panels up through 5/8" thick.
M628-M628BP: One circuit switch. Normally off. Two positions: off/on. S.P.S.T. Chrome plated brass knob and face nut. Knob face diameter is 3/4". Mounts in panels up through 1" thick.
M527-M527BP: Two circuits. Off/On #1 & #2, normally off.Chrome plated brass knob and face nut. Knob face diameter 3/4". 10 amps at 12V DC. Panel thickness to 1".
M531-M531BP: Two circuits. Normally off. SPST. Three positions: off - on #1 - on #2. Chrome plated brass knob and face nut. Knob face diameter measures 3/4". Fits panels up through 1". Permits two circuits (i.e., anchor and running lights) to be operated independently with one switch.
M476-M476BP: Two circuits. Normally off. Single pole, double throw. Three positions: off - on #1 - on #1 & #2. Chrome plated brass knob and face nut. Knob face diameter measures 3/4". Fits panels up through 1". Ideal for control of lighting circuits such as cabin and running lights.
M532-M532BP: Three circuit switch. Normally off. SPST. Three positions: off - on #1 & #2 - on #1 & #3. Chrome plated brass knob and face knob. Knob face diameter is 34". Fits panels up through 1". Especially suited for multiple lightinig circuits such as cabin, anchor and running lights.

More Information

More Information
condition new
Mfg PN M476BP
Mfg. Name COLE HERSEE
UPC Code 0632850484800
